50T Pneumatic Hydraulic Shop Press, 50T Capacity, 9" Stroke, for Auto Repair & Industrial Metalworking

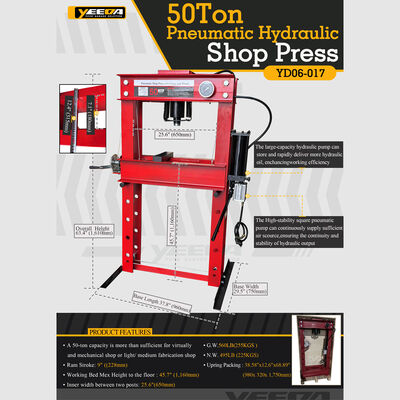

큰 이미지 : 50T Pneumatic Hydraulic Shop Press, 50T Capacity, 9" Stroke, for Auto Repair & Industrial Metalworking

제품 상세 정보:

원래 장소:	저장성, 중국
브랜드 이름:	YEEDA
인증:	CE
모델 번호:	YD06-017

결제 및 배송 조건:

최소 주문 수량:	50개
가격:	$132.14-142.85
포장 세부 사항:	상자 상자 또는 상자
배달 시간:	30-45일
지불 조건:	티/티
공급 능력:	500pcs/월

상세 제품 설명

강조하다:

50T hydraulic shop press for auto repair

50T pneumatic press for metalworking

hydraulic pipe bender with 9-inch stroke

50T Pneumatic Hydraulic Shop Press

50T Capacity, 9" Stroke, for Auto Repair & Industrial Metalworking

Product Specifications

Overall Height	63.4" (1,610mm)
Ram Stroke	9" (228mm)
Base Length	37.8" (960mm)
Base Width	29.5" (750mm)
Working Bed Max Height to Floor	45.7" (1,160mm)
Inner Width Between Two Posts	25.6" (650mm)
Gross Weight	560LB (255KGS)
Net Weight	495LB (225KGS)
Uplifting Packing Dimensions	38.58"×12.6"×68.89" (980×320×1,750mm)

Product Details

The YEEDA 50Ton Pneumatic Hydraulic Shop Press (Model YD06-017) is a high-performance workshop solution. Its pneumatic-hydraulic system ensures continuous and powerful hydraulic output for heavy-duty tasks. The large-capacity hydraulic pump stores and delivers more hydraulic oil efficiently, enhancing work efficiency. With a 9" (228mm) ram stroke and a 50-ton capacity, it handles tough pressing jobs with ease. The robust frame and well-designed base (37.8"×29.5") guarantee stability during operation.

Application Scenarios

This shop press is perfect for automotive repair garages, industrial manufacturing plants, and metalworking workshops. It excels in tasks like straightening, bending, and pressing components, meeting the demands of heavy-duty fabrication and maintenance.

Frequently Asked Questions

Is this press suitable for small-scale workshops?

Yes, despite its 50-ton capacity, its pneumatic-hydraulic design ensures energy-efficient operation, making it viable for small-to-medium workshops.

How to maintain the pneumatic-hydraulic system?

Regularly check the hydraulic oil level, inspect for leaks, and ensure the air source is clean and dry. Replace the oil as per the maintenance schedule.

Can the ram stroke be adjusted?

The ram stroke is fixed at 9" (228mm) for optimal force distribution, but the working bed height is adjustable to suit different workpieces.

What's the warranty period?

YEEDA offers a [X]-year warranty on the main structure and a [Y]-month warranty on the hydraulic and pneumatic components.
