상세 정보 |
|||
모델 부정.: | YD39-009,YD39-010,YD39-011 | 이름: | 축 조합 볼 |
---|---|---|---|
재료: | 강철 | 절차: | 뜨거운 위조 |
볼 용량: | 2000 파운드, 7000 파운드, 12000 파운드 | 몸 수용량: | 12,000LBS |
서피스: | 검은 분말 코트 | 애플리케이션: | 트레일러 |
부속: | 트레일러 중단 | MOQ: | 100 PC |
하이 라이트: | 12000 파운드 과중한 업무 축 히치 리시버,파우더 코팅 아주 튼튼한 축 히치 리시버,12000 파운드 조합 핀틀훅 구형 히치 |
제품 설명

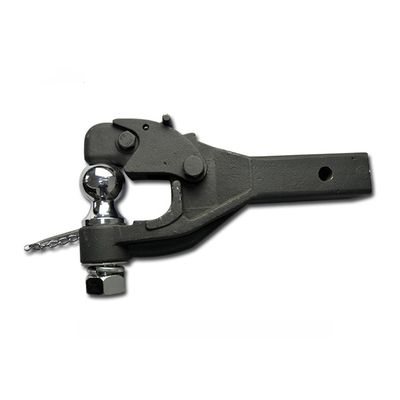

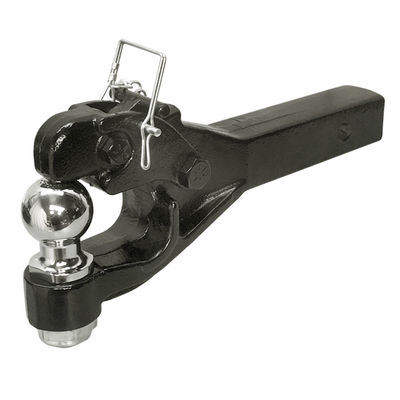

Heavy Duty Towing Coupled Trailer Hitch Pintle Hook
- In agriculture, construction and even military applications, pintle hitches are the trusted product of specialized towing. They are notorious for their high weight capacity and simple design. The basic pintle hitch is essentially a hook and loop, with the hook attached to the vehicle and the loop mounted on the trailer. Because of their simple design, pintle hitches are able to have thicker metal construction and more secure coupling. Tow Ready combination ball and pintle hitches combine both a pintle hook and a standard trailer ball to give you a more complete towing option on your heavy-duty truck or SUV.
- This particular receiver-mount ball and pintle hook is designed to insert into any 2" x 2" receiver tube. With a trailer ball capacity of 7,000 lbs., it offers a solid complement to any class 4 trailer hitch (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).
- The pintle hook fits any lunette ring with a 2" inside eye diameter, while the trailer ball can be coupled to any 2" coupler. The heavy-duty towing done with pintle hitches brings with it a certain amount of wear and tear on your towing equipment, and to prepare for this, Tow Ready uses a quality finish on all of our pintle mounts, lunette eyes and combination pintle hitches.

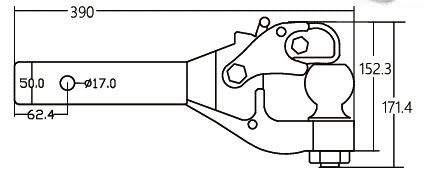

Specification:
Part No. | Ball Size | Ball Capacity (LBS) | Body Capacity (LBS) | NW | Finish | Shank | ||||
YD39-009 | 1-7/8" | 2,000 | 12,000 | 17.64 LBS (8 KG) | Black powder coat | Solid | ||||
YD39-010 | 2" | 7,000 | ||||||||
YD39-011 | 2-5/16" | 12,000 |
- Chain with Hitch Ball Chrome (Zinc/Black powder-coat / Stainless Steel) , 1 PC.
